THE WORLD’S FIRST AI-DRIVEN VOICE-CONTROLLED DRAWING SYSTEM FOR INDUSTRIAL INSULATION.

Don’t draw it. Say it. IsoDraf turns your voice into controlled technical drawings.

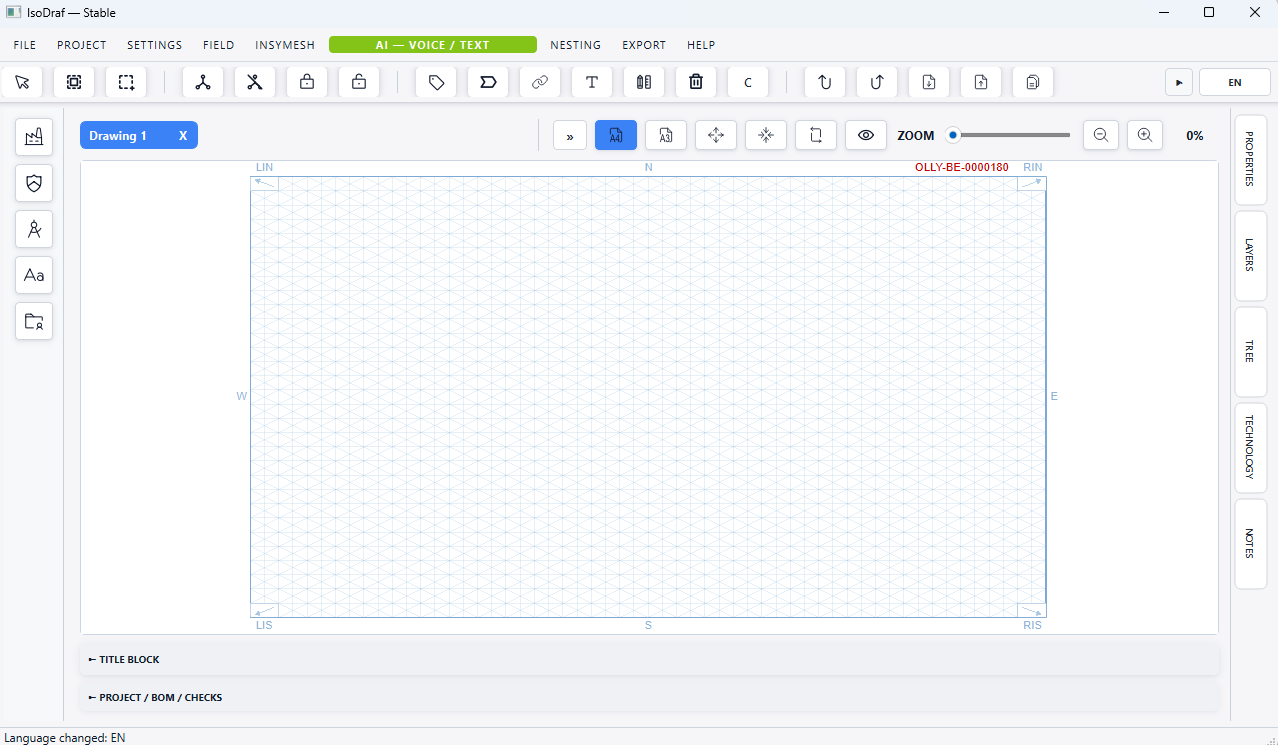

Choose your language

Engineering has a new language.

Your voice.

You say it. You get it. ENGINEERED WITH AI. CONTROLLED BY HUMANS.

VOICE · TEXT · MANUAL

Don’t draw it. Describe it.

Speak, type or work manually. IsoDraf interprets the instruction and turns it into controlled drawing data while you keep full access to edit and correct the result.

VOICETEXTMANUAL

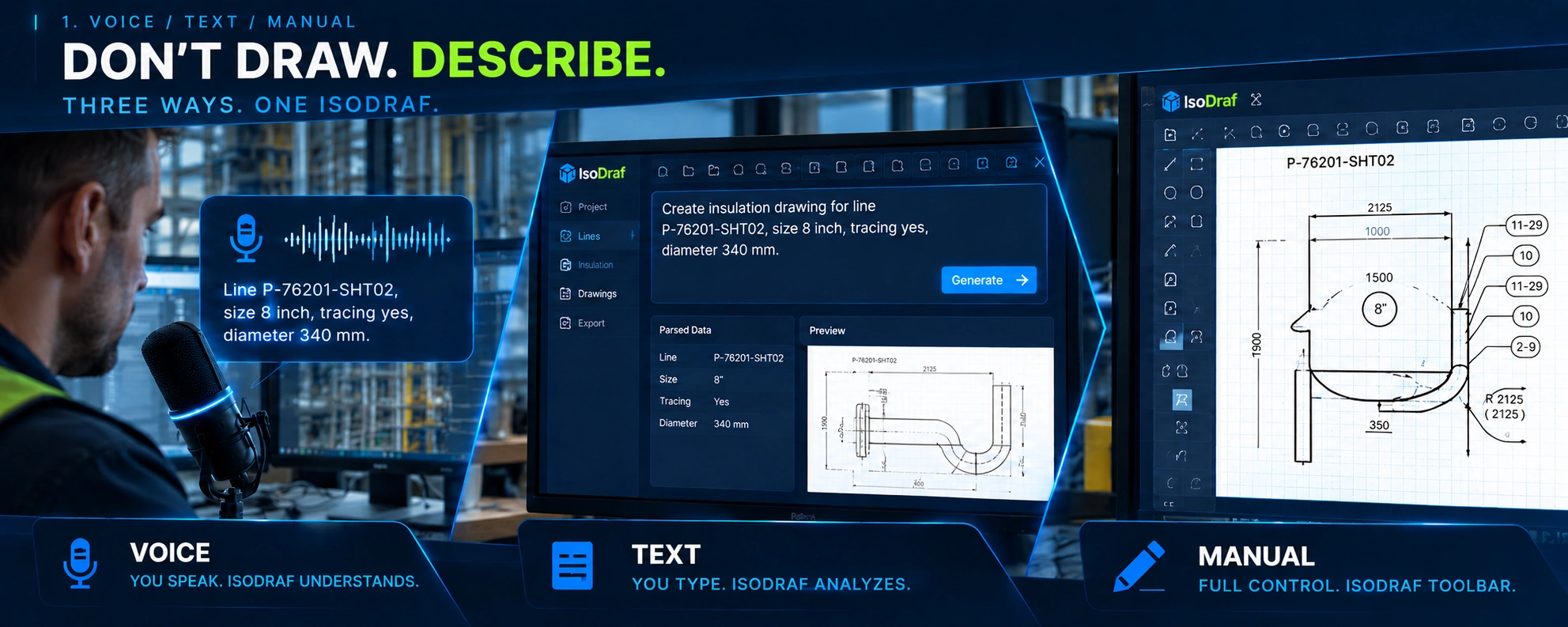

IsoDraf voice, text and manual workflow — One workflow. Three ways to work.

AI + ENGINEERING LOGIC

AI proposes. IsoDraf validates. You approve.

AI recognizes the user’s intent, but it does not freely invent a technical drawing. Geometry, dimensions and dependencies are checked by IsoDraf’s engineering logic before the result reaches the drawing.

VOICE / TEXT→AI→ENGINEERING LOGIC→ISDX→DRAWING→HUMAN APPROVAL

ENGINEERED WITH AI. CONTROLLED BY HUMANS.

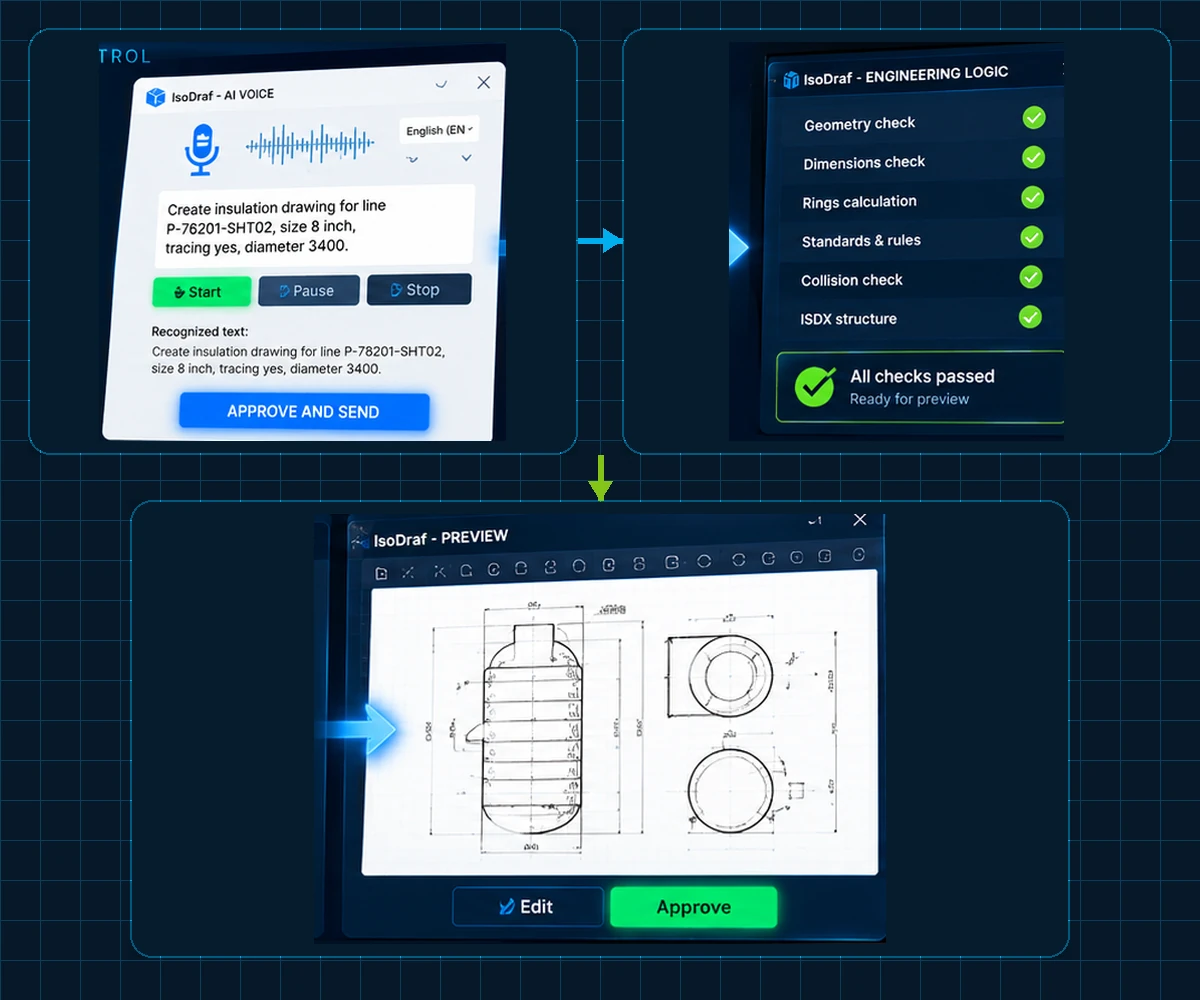

IsoDraf workflow from AI voice input through engineering validation to human approval — AI is an input layer — engineering logic remains in control.

20+ YEARS · INDUSTRIAL INSULATION

Built from field experience.

IsoDraf is being developed from more than 20 years of practical work in industrial insulation — from measurement and site execution to workshop preparation, coordination and control. Technology supports the specialist; it does not replace specialist knowledge.

20+YEARS OF FIELD EXPERIENCE

Industrial insulation specialists reviewing technical documentation on site — Developed around real insulation work, not a generic CAD demo.

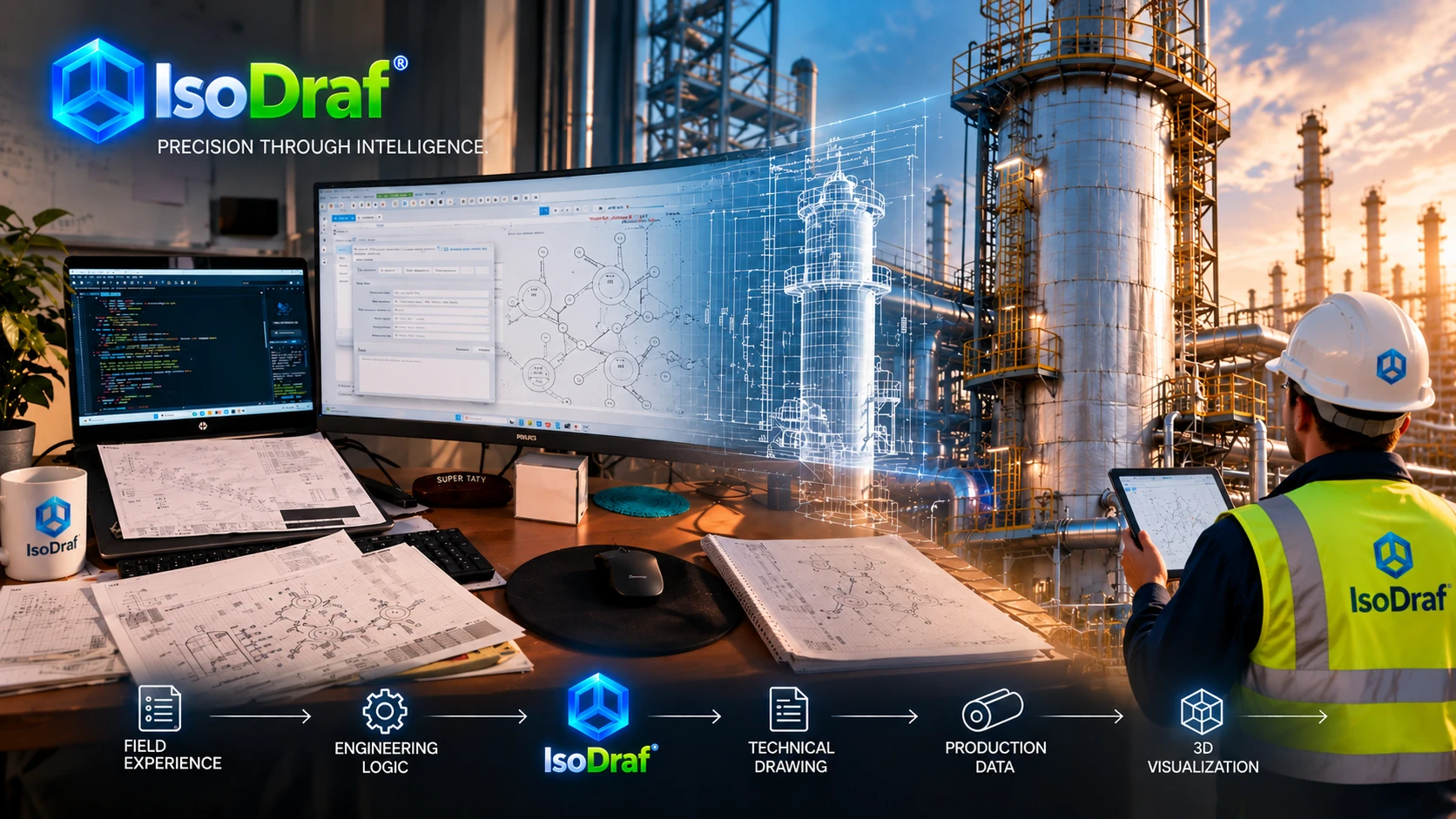

IsoDraf development workspace transitioning from technical documentation to an industrial insulation plant — From real documentation and field measurements to a controlled digital engineering workflow.

WHY ISODRAF WAS CREATED

IsoDraf was not created at a desk. It grew out of field work.

DEVELOPED WITHIN INSYON20+ YEARS OF FIELD EXPERIENCE

IsoDraf was created as a response to recurring problems in industrial-insulation measurement, production preparation and execution.

Its logic does not start with a generic CAD workflow. It starts with the way installers, measurers and workshop-preparation specialists actually work on industrial sites.

Developed within INSYON and based on more than 20 years of practical experience with piping, tanks, vessels and process installations, IsoDraf is designed around the relationships that matter in insulation work: diameters, insulation thicknesses, cladding divisions, rings, fittings, installation clearances and workshop data.

That is why IsoDraf combines manual, text and voice workflows. AI interprets the instruction, the program’s engineering logic checks it, and a human approves the result.

The result is not a generated picture. It is a structured, editable technical drawing.

FIELD EXPERIENCE→ENGINEERING LOGIC→ISODRAF→TECHNICAL DRAWING→PRODUCTION DATA

STRUCTURED DRAWING DATA

From instruction to an editable technical drawing.

The result is not an AI-generated picture. IsoDraf creates structured technical drawing data with geometry, dimensions, rings, POSTLINE, numbering and relationships stored in ISDX, ready for further editing and verification.

GEOMETRYDIMENSIONSRINGSPOSTLINEISDX

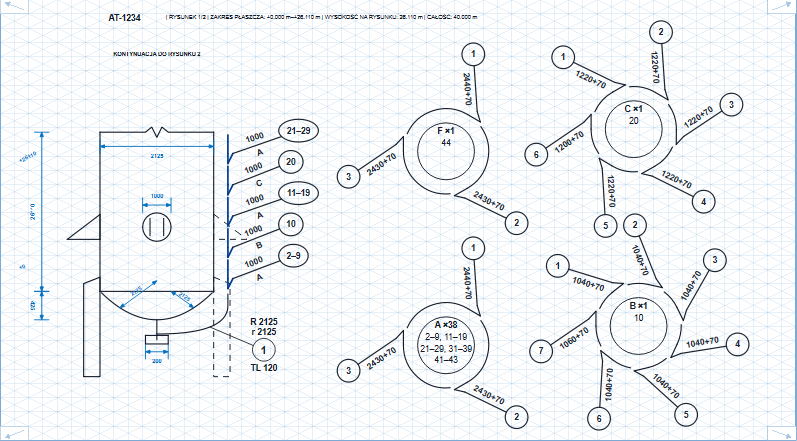

IsoDraf technical drawing AT-1234 — A technical data model — not a generated image.

2D → 3D · ISDX

One data model. Two views.

The same controlled ISDX data that drives the 2D technical drawing can also become the basis for a 3D visualization. After the drawing is generated, the apparatus, piping and insulation elements can be inspected from different angles while 2D remains the production reference.

2D FOR PRODUCTION3D FOR UNDERSTANDINGISDX

3D VISUALIZATION — IN DEVELOPMENT

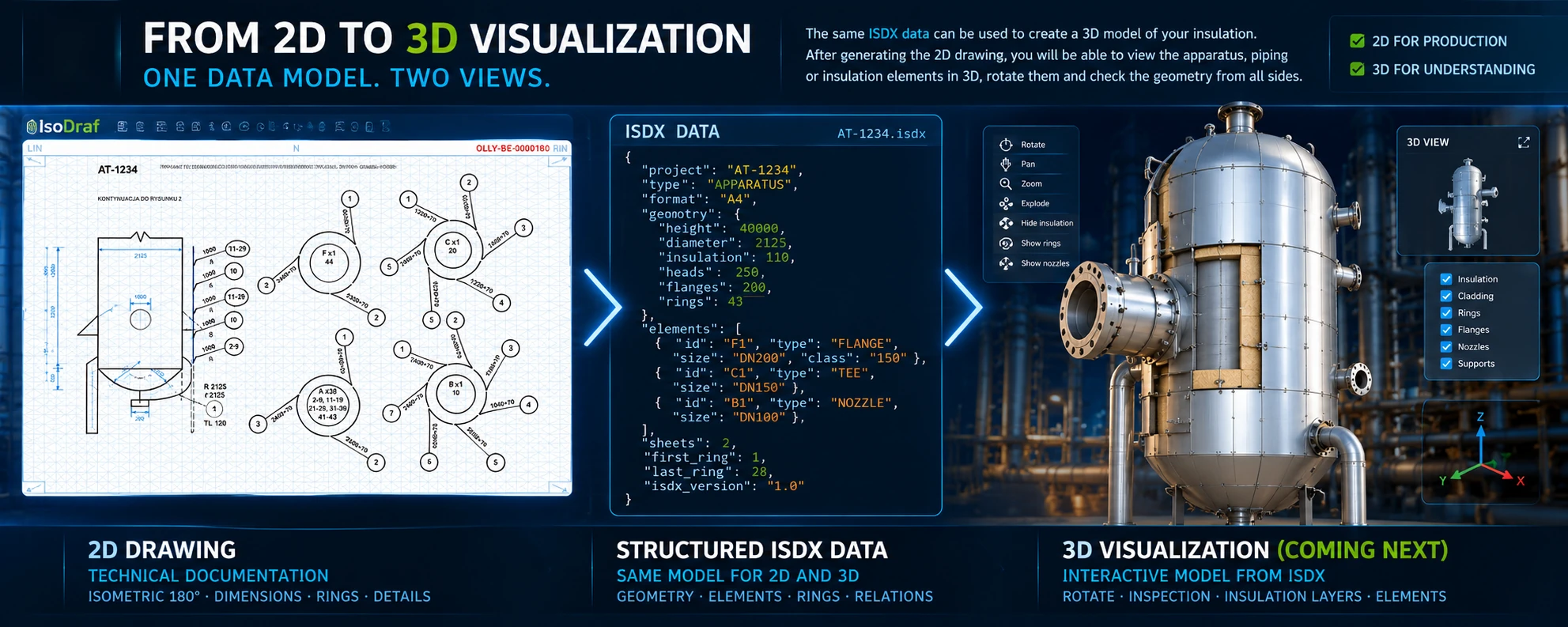

IsoDraf workflow from 2D drawing through ISDX data to 3D visualization — 3D is being developed as an additional view derived from the same ISDX data.

NAVISWORKS · CLEARANCE · INSULATION

Not only see it. Check it.

IsoDrafNavisClean

We built our own Navisworks plugin specifically for industrial insulation. It reads model data, calculates the required insulation space and compares it with the real distance in the 3D model.

This helps identify collisions and insufficient installation space before the problem reaches the site.

To the best of our knowledge, this is the first solution of its kind created specifically for automated insulation-clearance control in Navisworks.

3D MODEL→INSULATION DATA→CLEARANCE CHECK→HUMAN DECISION

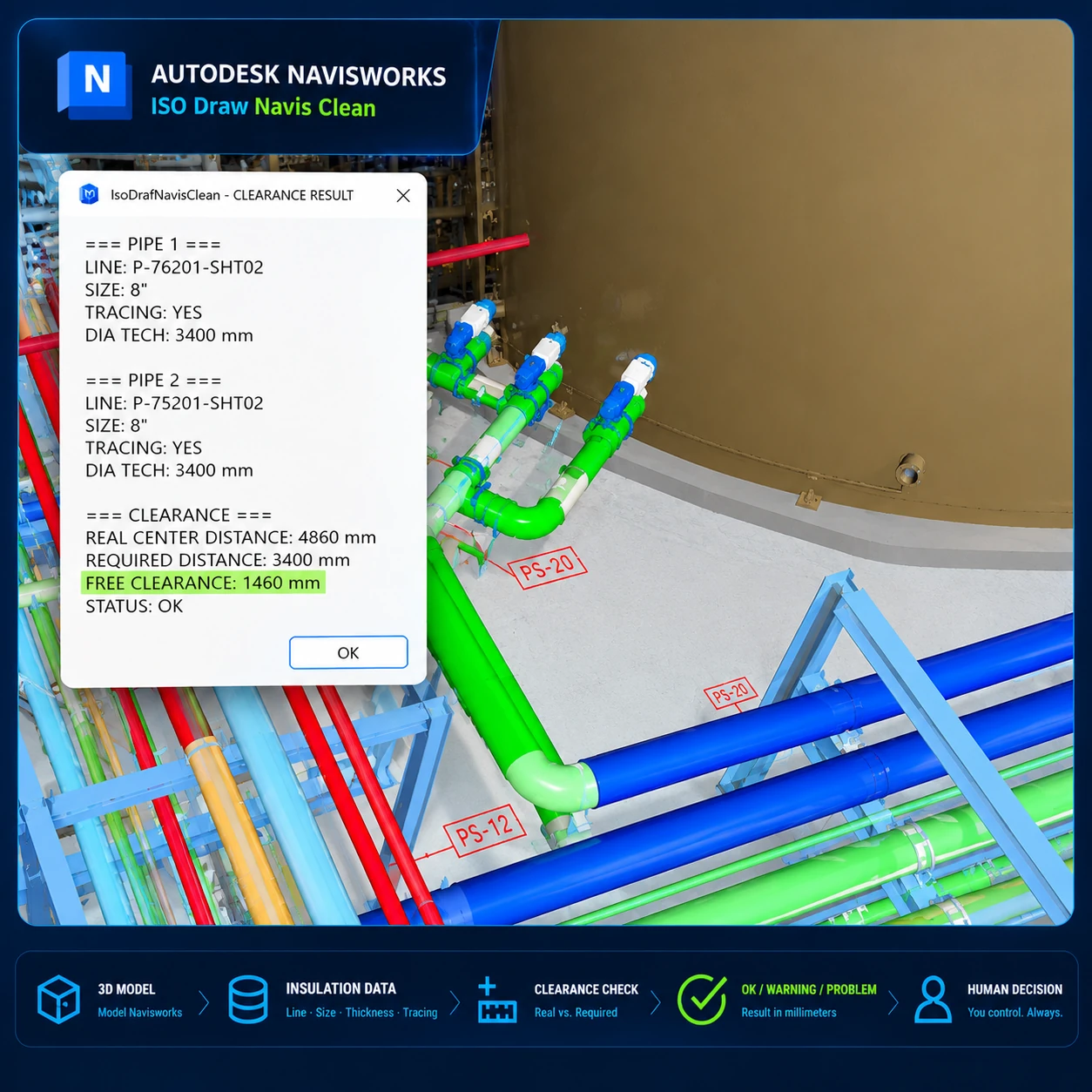

IsoDraf Navisworks plugin checking industrial insulation clearance in a 3D model — Our Navisworks plugin connects 3D model data with practical insulation-clearance checks.
